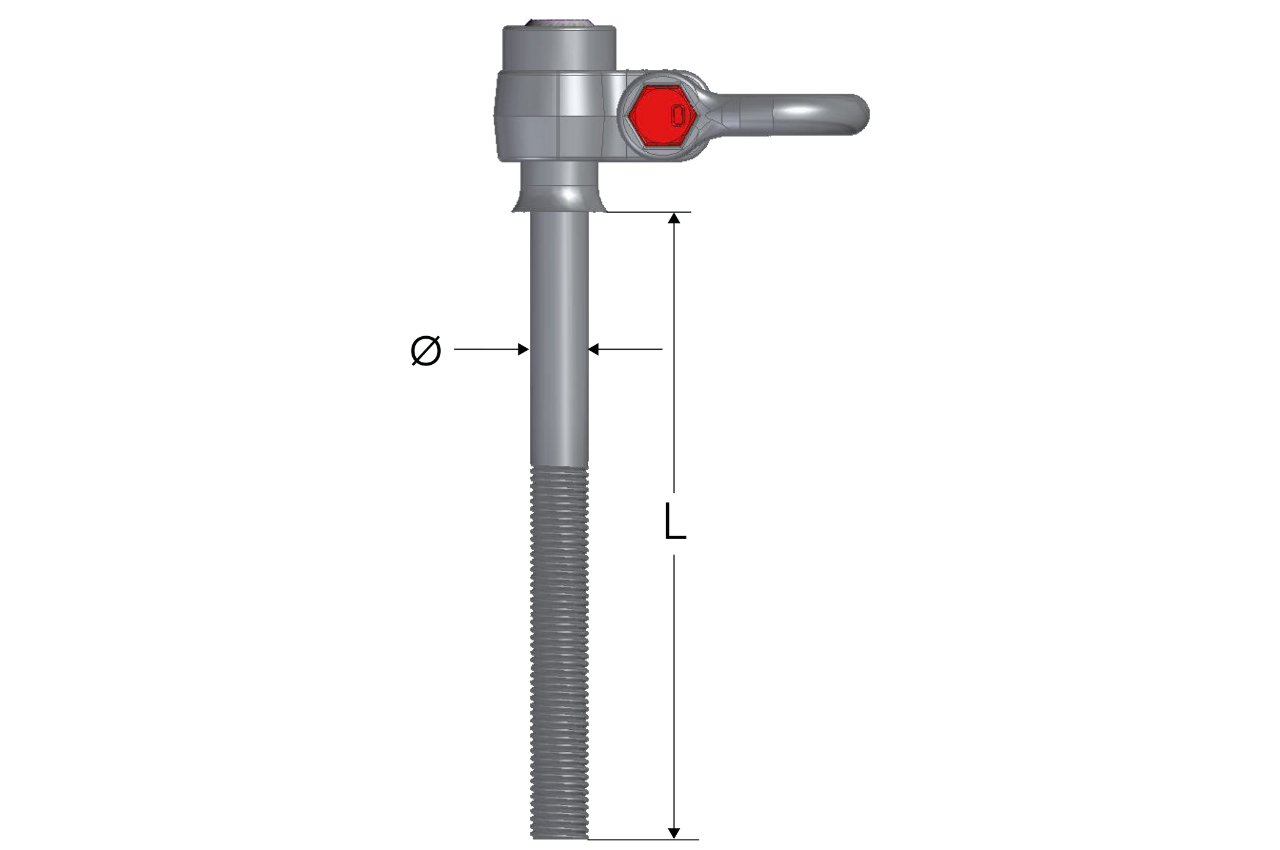

Swivel bolt

Features:

  • Swivel joint that reduces twisting

  • Made of hardened, hot-dip galvanised steel

  • Supplied with spacer tube for correct installation

  • Grooves on the bolt head for optimum adhesion in moulded fabric

  • Labelled with manufacturer, tracking number and MBL

  • Certified in accordance with. NS 9415: 2021
Go to the contact page See User Manual
Swivel bolt
Product number Product name MBL (tonnes) Max line load (tonnes)
1375939 Swivelbolt 80T 45 X 500 26.7
1375940 Swivelbolt 100T 50 X 500 33.3
1375941 Swivelbolt 140T 57 X 650 46.6

*Maximum line load is MBL/material factor
