| Product number | Product name | Unit | Min | Breaking load | N/mm2 | Weight | ||
|---|---|---|---|---|---|---|---|---|
| P.Nr. (1770) | ) P.Nr. (1960) | P.Nr. (2160) | 1770 | 1960 | 2160 | Kg/100mtr | ||
| 1166952 | Wire Galv 180KP/mm 6x19+1 3mm | MTR | 4,9 | 5,4 | 3,1 | |||
| 1166935 | Wire Galv 180KP/mm 6x19+1 4mm | MTR | 8,7 | 9,4 | 5,5 | |||
| 1166957 | Wire Galv 180KP/mm 6x19+1 5mm | MTR | 13,6 | 15 | 8,7 | |||
| 1166956 | Wire Galv 180KP/mm 6x19+1 6mm | MTR | 19,6 | 21,7 | 12,5 | |||
| 1168412 | Wire Galv 180KP/mm 6x19+1 7mm | MTR | 26,6 | 29,5 | 16,9 | |||
| 1166955 | Wire Galv 180KP/mm 6x19+1 8mm | MTR | 34,8 | 38,5 | 22,1 | |||
| 1166954 | Wire Galv 180KP/mm 6x19+1 10mm | MTR | 54,3 | 60,2 | 34,6 | |||
| 1166953 | Wire Galv 180KP/mm 6x19+1 12mm | MTR | 78,2 | 86,6 | 49,8 | |||
| 1166943 | Wire Galv 180KP/mm 6x19+1 14mm | MTR | 106,5 | 117,9 | 67,8 | |||
| 1166951 | Wire Galv 180KP/mm 6x19+1 16mm | MTR | 139,1 | 154 | 88,6 |
Example of application:
Cranes, slings, hoists, lifting equipment
and ski lifts.
Thread count: 114.

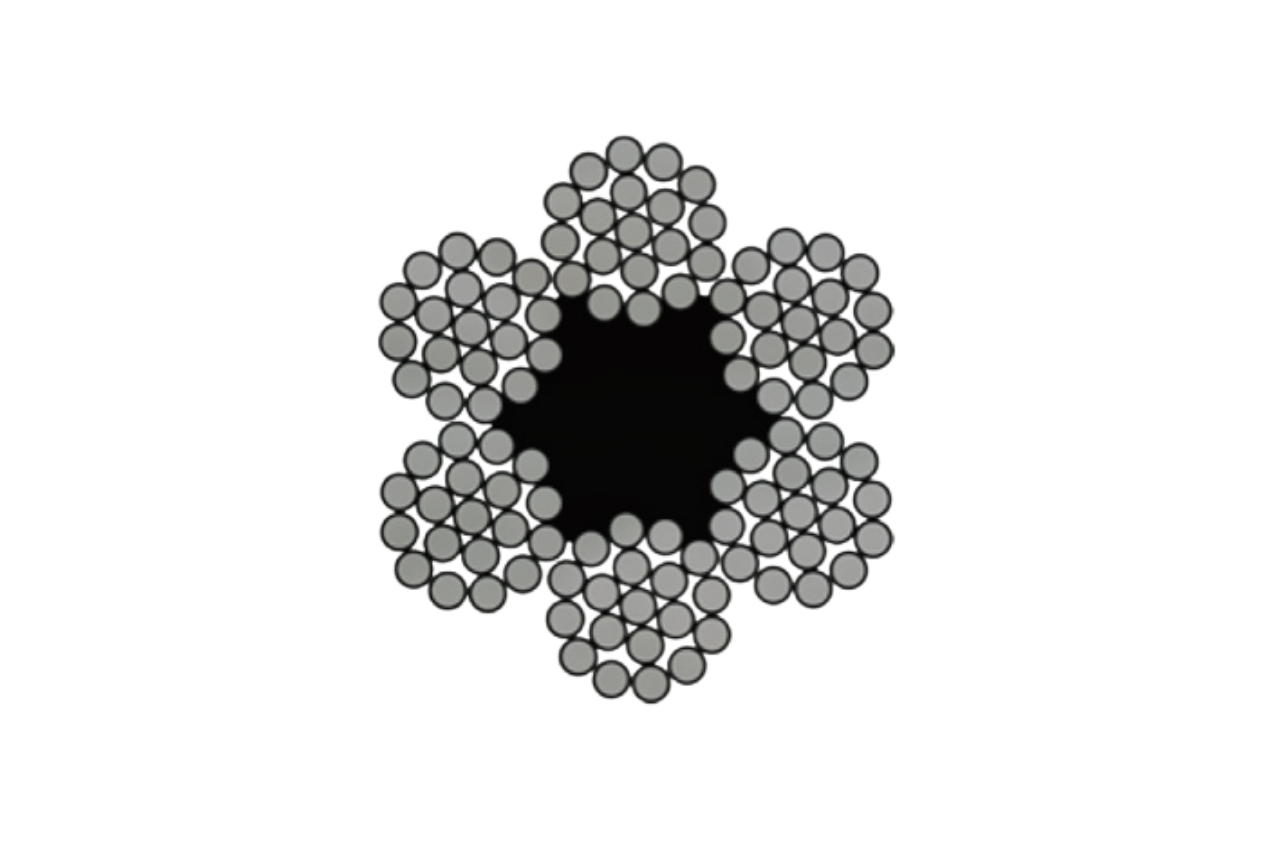

Construction: 3-7mm 6×19 FC / 8-36 mm 6x19S-FC.
Execution: Right cross-hatched.
Surface treatment: Galvanised.
